Calibration of Meters

Inaccurate measurement leaves oil and gas companies exposed to the risk of large financial losses whether at the exploration, production, or distribution stage.

With calibration of measurement instrumentation services from BRIMBERG INSPECTION LIMITED, you can be sure of the highest degree of measurement accuracy, reducing measurement uncertainties. Meter calibration enables you to avoid errors and mismeasurements. We assist you with certifying meter accuracy and the calibration of storage tanks

Why BRIMBERG INSPECTION LIMITED?

Our experts have many years of experience in the industry covering all types of meter and tanks calibration together with a wide range of international measurement reference standards.

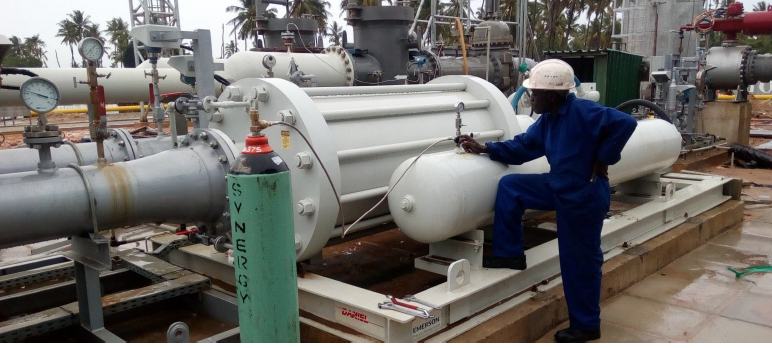

Through our nationwide network, we can also offer you an extensive range of fixed pipe and mobile master prover rigs, volumetric calibration systems, which can be used on a wide variety of hydrocarbon products as well as calibration of tanks using the most advanced technology.

Calibration of Tanks

Reliable quantity measurement is the critical basis of good contractual relationships in worldwide trading of chemicals, petroleum products and liquefied gases.

This can only be assured by accurate and regular calibration.

When you need to be sure of your tank calibration results, BRIMBERG INSPECTION LIMITED has the leading solution. BRIMBERG INSPECTION LIMITED innovative laser-calibration measurement technology helps companies to reduce time and costs of tank management, as well as offering precise storage tank calibration to ISO7504.

Our laser technology and specialist software deliver results that are accurate, fast and safe to cost-efficient management for storage tanks, gas vessels and stockpile measurements. Not just volumes, but accurate roundness surveys, tank tilt & settlement and other construction measurements are straightforward.

What is the precise capacity of your tank? The difference can mean thousands of dollars to your business.

BRIMBERG INSPECTION LIMITED’ approach will replace the traditional 2- day turnaround with increased accuracy.

Features include

• Tank floor volume measurement that can save 300% compared to alternatives
• Automated measurement to minimise human errors
• Faster results – just four hours
• Reduce down-time on your plant operations

The combination of accurate, fast and comprehensive calibration results helps companies to drive cost-efficiencies. Our calibration engineers use the measurements to deliver comprehensive results, so you can

• Gain a more accurate picture of the current dimensions and state of your bulk storage containers
• See a visual guide to the condition of your plant using our 3D mapping of the results
• Enable long-term management of maintenance using trend analysis of historical results

BRIMBERG INSPECTION LIMITED offers you a full-service approach, and provides regular measurement to reduce the total plant cost of ownership, and to

• Deliver volumes with calibrated and measured confidence over time
• Calibrate to constantly be within agreed limits
• 3D modelling of tank floor and shell to plan future floor levelling and floating roofs installation
• Have 24/7 access to your data

When you use one of our highly trained and professional calibration engineers, you are tapping into the BRIMBERG INSPECTION LIMITED’ expertise in tank calibration. You will find our calibration experts have the years of experience needed to manage a wide range of measurement situations.

Inspection Of Tanks

INSPECTION, NON DESTRUCTIVE TESTING & LEAK DETECTION OF TANKS

Storage of large quantities of hazardous substances entails risk for the population, the environment and the surrounding area. Spills of hazardous substances into the soil can lead to expensive decontamination processes. Leakage from storage tanks containing oil, gas or chemicals can be caused by the influence of weather on the external surfaces, or material can be affected by internal temperature variations. These situations could lead to a disaster. Periodic inspections, conducted in good time, can prevent such disasters from happening.

STORAGE TANK INSPECTION & AUDIT

In order to assure your Storage Tanks compliance with Local Regulations as well as with the relevant Standards and Codes, BRIMBERG INSPECTION LIMITED provides Technical Audits according to EN 14015, API 650 or 653, EEMUA 159 or Clients’ Specifications.

These Inspections include

• Tank foundation and settlements evaluation
• Tank bottom evaluation
• Tank shell evaluation
• Tank roof evaluation
• Tank access evaluation
• Tank security instruments check
• Tank environmental study
• Survey of repairs

BRIMBERG INSPECTION LIMITED has the experience and the equipment to carry out expert controls and inspections for owners of storage sites for hazardous substances and installations in all industrial sectors.

With the competence of a Notified Body, BRIMBERG INSPECTION LIMITED performs independent assessment, testing and verification for storage tanks.

Besides periodic visual inspections, BRIMBERG INSPECTION LIMITED is also a specialist in Non-Destructive Testing (NDT). By offering a complete range of Conventional NDT Techniques and Special Examinations, BRIMBERG INSPECTION LIMITED is in the position to provide not just a list of standard techniques but solutions using a combination of multiple techniques.

FULL SERVICE

• Periodic visual external and internal inspections
• Fugitive emission and leak detection through infrared camera
• Mechanical integrity study
• NDT techniques
• Traditional NDT techniques
• Floorscan/Magnetic Flux Leakage
• Corrosion Mapping
• Tracing of system leaks and determination of material strengths
• Hydrostatic pressure tests
• Ultrasonic density tests
• Determination of water and sludge inside containers
• Determination of subsoil corrosiveness
• Safety systems control
• External thickness measurements and calculation reviews
• Adjustment and stamping of identification plates
• Welding procedures and welding qualifications for customary international standards, including ASME, ISO15614 and DIN EN 287
• Project Management and Supervision of Construction
• Environmental impact studies and risk analysis

BRIMBERG INSPECTION LIMITED also monitors safety procedures for cleaning or welding activities of contractors during maintenance on-site. This applies for facilities such as

• Underground and aboveground flammable and hazardous product storage sites
• Storage tanks for compressed or liquefied gases

STANDARDS AND CODES

BRIMBERG INSPECTION LIMITED inspects tanks for conformity with all international construction codes and standards, such as EN, API, BS, DIN, ASME, AD Merkblätter, RTOD.

RECOGNITION

• NDT operators certified according to SNTC-1A and EN473 standards
• Recognized Third Party

NON-DESTRUCTIVE TESTING

The storage of dangerous goods in tanks must be executed in a safe way. In order to reduce the economical as well as the environmental risks, a thorough knowledge of the tank condition, and in particular the tank bottom and shells, is of outmost importance.

With the knowledge and inspection experience of BRIMBERG INSPECTION LIMITED, NonDestructive Testing (NDT) services provide your installation with added quality, cost reduction, business security and improved safety, for both existing and new installations. NDT gives a clear insight into the risk of leakage or other safety critical defects, which increases the integrity and safety within the installation, and hence avoids undue operating expenses.

Non-Destructive Testing of storage tanks includes several methods of examining materials, components and connections in order to identify and quantify material defects and degradations.

TANK BOTTOM INSPECTION

For the inspection of tank bottoms, BRIMBERG INSPECTION LIMITED offers you a quick and above all reliable inspection by combining two techniques: Magnetic Flux Leakage (MFL) and Ultrasonic Testing (UT). By using these two techniques, corrosion is detected effectively (MFL) and reliably quantified (UT).

MFL is a detection technique, which detects volumetrically changes. A strong magnet induces a magnetic field in the material. On a corrosion spot, a leakage field will arise. The larger the corrosion the larger the field will be.

After the fast MFL inspection is done, the “suspicious” areas of the tank bottom surface will be quantified by the slow but more accurate UT.

TANK SHELL INSPECTION

To assess the accurate wall thickness of tank shells we use a rugged remote access ultrasonic crawler. The equipment is designed to allow cost effective ultrasound thickness measurements on above ground ferro-magnetic structures without the need for costly scaffolding or rope access.

The crawler system can be automatically or manually operated and transverses the tank shell either at equal distant points or 100 % around the tank circumference.

The multi-axis robotic inspection arm is capable of taking ultrasonic measurements and transmitting the wall thickness and A- and D-Scan inspection data in real time to the operator’s remote panel. Different colours will visualise degradation levels and concentrations of corrosion during the scan and later in the report.

SPECIAL LEAK TESTING

Leaks in installations or vessels can cause environmental pollution and waste of expensive fuel and energy. Therefore, Leak Testing is performed to locate leaks and measure the leakage of pressurized (or decompressed) test products.

BRIMBERG INSPECTION LIMITED performs the following Leak Test methods

• Ammonia Leak Test
• Helium Leak Test
• Bubble Leak Test
• Pressure Change Measurement Test

TANK LEAK DETECTION

Above ground, storage tanks are a key part of any distribution operation. From a commercial point of view, product leakage results in a direct loss of revenue. From an environmental view, product leakage can lead to contamination of soil and water courses leading potentially to punitive action from the Environmental Agency and negative corporate publicity.

BRIMBERG INSPECTION LIMITED offers a quantitative tank leak detection system, which does not require tank entry thereby dramatically reducing costs. Our tank leak detection system monitors the mass of liquid in the tank over a period of time in order to identify the presence and magnitude of any leakage. Liquid mass is derived from the head pressure at the bottom of the tank. This is measured using a differential pressure transmitter which is located along with the PLC outside of the tank.

The pressure head at the base of the tank is transferred to the transmitter using a nitrogen bubbler system.

The sensitivity of the system is impressive, with level changes of the order of 0.004 mm per hour detectable. This equates to a leakage rate of less than 3 litres per hour from a 30 metre diameter tank.

BRIMBERG INSPECTION LIMITED - replaces automatic tank entry with a periodic” health check”. Tank entry is only triggered when a health check identifies that the tank is leaking, thereby eliminating unnecessary spend, and allowing the maintenance budget to be focused where it is actually needed. In cases a leak has been observed, but the offending tank cannot be identified, this system enables the operator to find the leaking tank without having to take them all out of service. Unnecessary expense is eliminated and the risk to personnel minimised as only leaking tanks will be entered.

ADVANTAGES

• Accuracy unaffected by fluid temperature changes
• Non-intrusive, non-hazardous and intrinsically safe
• Minimal tank preparation
• No tank stabilisation time
• Prompt, conclusive and quantitative results
• No capital investment by tank owner
• Not affected by water at tank bottom or product stratification
• Not influenced by roof or tank bottom structure
• Test of any viscous fluid at routine operating conditions and capacity

CAN BE USED TO

• Supplement alternative inspection plans for API 653
• Evaluate tank bottom integrity after internal inspections
• Perform periodic tank bottom assessments in accordance with API 653
• Classify and prioritise tanks for future repairs
• Document tank bottom integrity in conjunction with a hydrostatic test
• Determine the existence of a suspected leak
• Comply with or supplement company policies for leak detection programmes

CSC Inspection & Certification of containers

Shipping containers used for export must have a valid CSC plate which is part of the consolidated data plate and normally found on one of the container doors.

CSC is an abbreviation for the "International Convention for Safe Containers,1972" and is the responsibility of the owner to carry out any maintenance to ensure that their shipping containers conforms to the CSC regulations prior to export.

If a container is found with an out of date CSC plate during transit it could be stopped and incur hefty port charges.

BRIMBERG INSPECTION LIMITED

Provides CSC Container inspection services to make sure that:

• You comply with the guidelines laid out by CSC
• Your container is in good condition for shipping.
• You are covered by insurance in case of an accident in a Port because your insurance would not cover you if your container didn’t have a valid inspection certificate.
• Your containers are accepted by the shipping lines prior to loading the container on a vessel.

To comply with the guidelines laid out by CSC, containers required for export must undergo a periodic examination. This is to determine whether they are fit for purpose and have no defects that would place any person in danger.

The timescale for these examinations are as follows:

• For a new container, the interval from the date of its manufacture to the date of its first CSC inspection shall not exceed 5 years.
• For a used container and one that is older than 5 years the interval of subsequent CSC examinations shall be of no more than 30 months.
• The only exception to the above are for shipping containers that have been modified. These must be examined regardless of timescale prior to export to ensure structural integrity has not been compromised.

Once inspected and passed a certificate would be issued which could be required by the forwarding agent / shipping line.
